Activated Carbon, Impregnated Activated Carbon, and FeO-Based Adsorbents

In the world of gas purification — especially biogas upgrading, natural gas sweetening, wastewater odor control, and industrial air treatment — hydrogen sulfide (H₂S) removal is critical. H₂S is highly corrosive, toxic, and odorous even at low concentrations. Three leading adsorbent technologies dominate the market: standard Activated Carbon (AC), Impregnated Activated Carbon, and FeO/Iron Oxide-Based Adsorbents (including iron sponge, SulfaTreat®, and iron hydroxide media).

This in-depth guide compares their mechanisms, capacities, operating conditions, features, benefits, ideal applications, regeneration options, and real-world economics. Whether you operate a biogas plant, landfill gas facility, or industrial scrubber, understanding these differences will help you choose the most cost-effective and reliable solution.

What Is Activated Carbon and How Does It Remove H₂S?

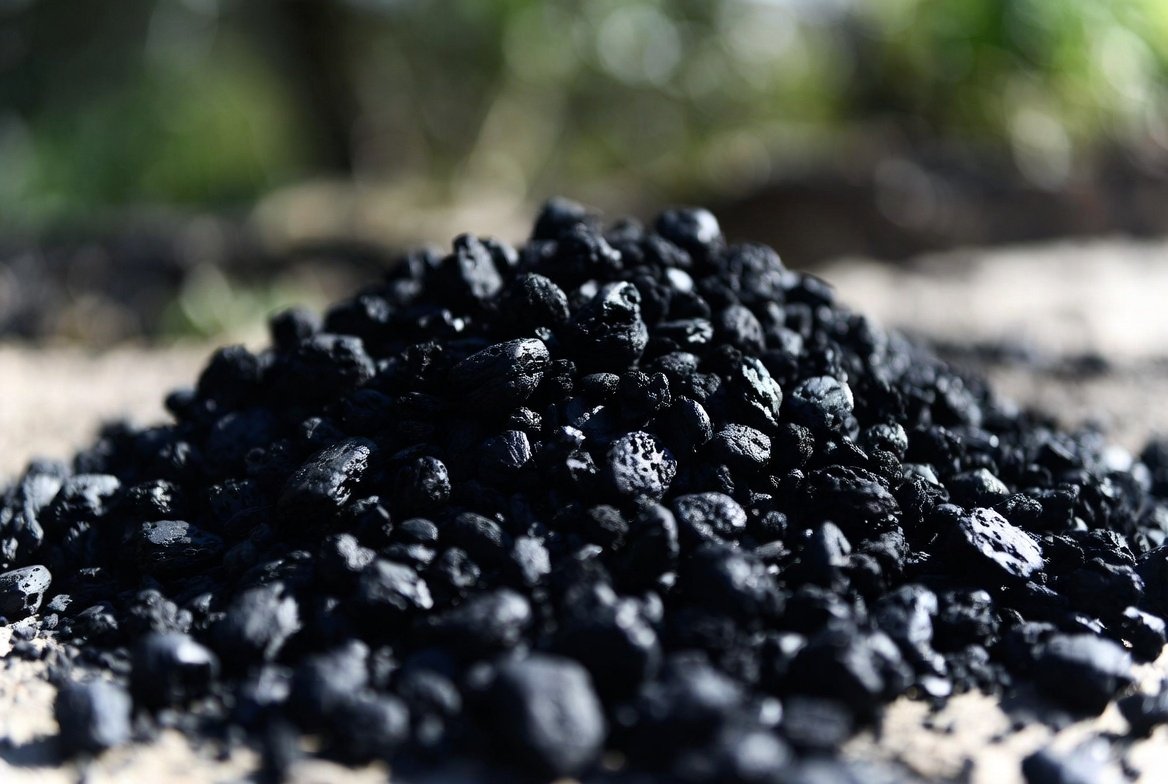

Standard (virgin) activated carbon is a highly porous material produced from coal, coconut shells, or wood with surface areas reaching 800–2,500 m²/g. It primarily works through physisorption — H₂S molecules are physically trapped in its micropores.

In the presence of 20–30% moisture and trace oxygen, virgin AC also provides catalytic oxidation: 2H₂S + O₂ → 2S + 2H₂O. Elemental sulfur and some sulfate deposit inside the pores, giving it a secondary chemisorption boost.

Key Features & Benefits:

• Excellent for multi-contaminant removal (VOCs, siloxanes, mercaptans, odors)
• Compact bed design — lower capital cost for vessel size
• Low pressure drop
• Proven technology with thousands of installations worldwide

Typical Capacity: 10–20 kg H₂S per m³ of carbon (roughly 5–15 mg/g depending on conditions). Breakthrough times are shorter at high H₂S concentrations.

Limitations: Low capacity for high H₂S loads (>500 ppm), sensitive to low humidity or zero oxygen, and usually non-regenerable in practice (spent carbon is landfilled or incinerated).

Impregnated Activated Carbon: Engineered for Superior H₂S Performance

Impregnated AC takes virgin carbon and loads it with alkaline or metal compounds such as KOH, NaOH, KI, CuSO₄, Zn acetate, or metal oxides. These impregnants dramatically shift the mechanism from mostly physisorption to strong chemisorption and catalytic oxidation.

Common reactions include rapid conversion of H₂S into elemental sulfur or stable sulfates on the carbon surface. Popular grades include KI-impregnated (50–65% loading capacity) and caustic-impregnated pellets.

Key Features & Benefits:

• Capacity jumps to 120–140 kg H₂S/m³ (often 6–10× higher than virgin AC)
• Excellent selectivity for H₂S even in the presence of CO₂ and moisture
• Works at low concentrations (<3,000 ppm) to achieve <1–10 ppm outlet
• Compact systems — ideal for polishing or final-stage treatment
• KI-impregnated versions excel in low relative humidity streams

Operating Conditions: 20–30% moisture ideal, 50–70°C, 7–8 bar, trace oxygen required for best performance.

Drawbacks: Higher upfront media cost, risk of exothermic bed fires if over-loaded or poorly managed, and spent impregnated carbon is often classified as hazardous waste (requires special disposal or costly re-impregnation).

FeO/Iron Oxide-Based Adsorbents: Chemical Reaction Powerhouses

Iron oxide (Fe₂O₃), iron hydroxide (FeOOH / Fe(OH)₃), and hybrid products (SulfaTreat®, iron sponge, Ferrolox-G) work via true chemical reaction (chemisorption) rather than simple adsorption.

The primary reaction for iron oxide is:
Fe₂O₃ + 3H₂S → Fe₂S₃ + 3H₂O
For iron hydroxide: 2FeOOH + 3H₂S → Fe₂S₃ + 4H₂O

Spent media can often be regenerated with air/oxygen to produce elemental sulfur and restore the iron oxide/hydroxide (though capacity drops after 1–3 cycles).

Key Features & Benefits:

• Extremely high practical capacity: 200–710 g H₂S/kg media (20–40% sulfur by weight) — iron hydroxide versions reach 710 g/kg
• Thrives in wet, saturated gas streams (40%+ moisture actually helps)
• Handles high H₂S concentrations (50–15,000 ppm) with >99.9% removal
• Can also remove siloxanes and some mercaptans
• Non-pyrophoric modern formulations (SulfaTreat®) are safe and easy to handle
• Lower pressure drop in granular/pellet forms

Operating Conditions: 18–50°C, minimum 140 kPa, down-flow recommended, 40% ±15% moisture, regeneration with 1–5% air injection.

Drawbacks: Bulkier beds, heavier media, exothermic regeneration requires careful heat management, and spent material (iron sulfide) needs proper disposal (though many are non-hazardous).

Head-to-Head Comparison: Activated Carbon vs Impregnated AC vs Iron Oxide Adsorbents

Parameter	Virgin Activated Carbon	Impregnated Activated Carbon	FeO/Iron Oxide-Based (incl. Hydroxide & Sponge)
Mechanism	Physisorption + catalytic oxidation	Chemisorption + enhanced catalysis	True chemical reaction (sulfide formation)
Typical Capacity	10–20 kg H₂S/m³	120–140 kg H₂S/m³	200–710 g H₂S/kg (20–40% wt sulfur)
Optimal H₂S Range	Low (<500 ppm)	Low–medium (up to 3,000 ppm)	Medium–high (50–15,000 ppm)
Moisture Requirement	20–30% (critical)	20–30%	High (40%+ — actually beneficial)
Oxygen Requirement	Trace needed	Trace needed	None for removal; needed only for regeneration
Regeneration	Difficult / not practical	Limited (steam or thermal — fire risk)	Yes (air oxidation, 1–3 cycles typical)
Multi-Contaminant Removal	Excellent (VOCs, siloxanes)	Good	Moderate (excellent for siloxanes in some grades)
Fire / Safety Risk	Low	High (exothermic)	Moderate (modern grades non-pyrophoric)

When Should You Choose Each Technology?

Use Virgin Activated Carbon when: You have low H₂S (<200 ppm) combined with VOCs, siloxanes, or odors; space is limited; you want a simple, one-time “polish” solution; or you are treating air streams rather than raw biogas.

Use Impregnated Activated Carbon when: You need ultra-low outlet H₂S (<10 ppm), moderate concentrations up to 3,000 ppm, and a compact system; you have consistent trace oxygen and moisture; polishing after a bulk removal stage (e.g., after iron oxide or biological treatment).

Use FeO/Iron Oxide-Based Adsorbents when: High H₂S loads (500+ ppm), wet/saturated gas streams, bulk removal is required, you want regeneration capability, or you prioritize lowest operating cost per kg of sulfur removed. Ideal for biogas plants, landfill gas, and natural gas sweetening.

Economics: Which Technology Is Most Cost-Effective?

Running costs (industry averages for biogas applications):

• Impregnated AC: ≈ 3.5 €/kg sulfur removed (higher media price offset by capacity)
• Iron Sponge: 1.7–4.5 €/kg sulfur
• Proprietary Iron Oxide (SulfaTreat® etc.): 3.5–6.2 €/kg sulfur

Virgin AC is cheapest upfront but has the highest media replacement frequency. Impregnated AC offers the best balance for polishing stages (lower vessel size, less frequent changeouts). Iron oxide systems win on total cost of ownership for high-H₂S streams because of higher capacity per kg of media and partial regenerability. Disposal adds 20–40% to lifetime cost for all spent media — iron-based products are often easier and cheaper to dispose of than impregnated carbon.

Capital cost: AC systems are more compact and cheaper to install; iron oxide beds are larger but use simpler, lower-pressure vessels. Over a 5–10 year lifecycle, iron hydroxide or modern non-regenerable iron oxide media frequently deliver the lowest €/Nm³ treated gas in biogas applications.

Environmental & Operational Considerations

All three technologies produce spent media that must be managed responsibly. Modern iron-based products are often non-hazardous and can be landfilled or used in construction. Impregnated carbons may require hazardous-waste handling. Regeneration of iron oxide recovers elemental sulfur — a potential revenue stream or fertilizer ingredient.

Hybrid systems are increasingly popular: iron oxide for bulk H₂S removal followed by impregnated AC polishing. This combination achieves <1 ppm H₂S at the lowest total cost while minimizing waste.

Conclusion: Choosing the Right Adsorbent for Your Application

There is no universal “best” — it depends on your H₂S concentration, gas moisture, flow rate, target outlet purity, and budget. Virgin activated carbon remains the workhorse for general air and low-load odor control. Impregnated activated carbon excels in precision polishing and compact installations. FeO/iron oxide-based adsorbents dominate high-load, wet-gas bulk removal and offer the best economics for most biogas and natural gas plants.

Consult a specialist for site-specific pilot testing — small changes in moisture, oxygen, or siloxane content can shift the economics dramatically. With proper selection, any of these technologies can deliver reliable, cost-effective H₂S removal for decades.

Need help sizing a system or comparing quotes for your specific flow rate and H₂S loading? Contact your adsorbent supplier with your gas analysis — the right choice today will save thousands in operating costs tomorrow.
