Introduction
Hydrogen sulfide (H₂S), a colorless, flammable, and highly toxic gas with a characteristic rotten egg odor, is a common impurity in natural gas reservoirs. Often referred to as “sour gas,” natural gas containing more than 4 parts per million (ppm) of H₂S is classified as “sour” by industry standards, posing unique challenges to the transportation and processing infrastructure. While H₂S must be removed to meet pipeline specifications (typically limited to 4 ppm in the U.S.), trace amounts can persist, and higher concentrations are encountered in upstream production and processing facilities.
The presence of H₂S in natural gas is not merely an environmental or health hazard; it is a potent corrodent that accelerates the degradation of carbon steel pipelines, the material of choice for most natural gas transmission systems due to its cost-effectiveness and strength. This article delves into the mechanisms by which H₂S contributes to corrosion, its profound effects on pipeline integrity, and the staggering economic toll it exacts on the oil and gas industry. Drawing from scientific literature and industry reports, we explore how this insidious gas undermines the safety and reliability of energy infrastructure.
The Presence and Sources of H₂S in Natural Gas
Natural gas from sour reservoirs, particularly in regions like the Permian Basin in Texas, the Middle East, and parts of Canada, can contain H₂S levels exceeding 10% by volume. It forms through bacterial sulfate reduction in reservoirs or thermochemical processes at high temperatures and pressures. During extraction, H₂S partitions into the gas phase and can dissolve in associated water (brine), creating a wet environment that exacerbates corrosion risks.
In pipelines, even low levels of H₂S can interact with water vapor, CO₂ (another common impurity), and steel surfaces to initiate corrosive reactions. The severity depends on factors such as partial pressure of H₂S (pH₂S), temperature, pH, flow velocity, and steel composition. Environments with pH₂S > 0.05 psi are classified as “sour service” under NACE MR0175/ISO 15156 standards, requiring specialized materials and monitoring.
Mechanisms of H₂S-Induced Corrosion
H₂S corrosion in natural gas pipelines is multifaceted, involving both general corrosion and localized cracking mechanisms. Unlike uniform corrosion from CO₂ alone, H₂S introduces hydrogen embrittlement, making it particularly insidious. The primary processes are electrochemical in nature, driven by the dissociation of H₂S in aqueous environments.
General Corrosion and Electrochemical Reactions
H₂S acts as a weak acid in water, dissociating into HS⁻ and H⁺ ions, which lower the pH and promote anodic dissolution of iron:
At the cathode, H₂S facilitates hydrogen evolution:
This produces atomic hydrogen (H) that adsorbs onto the steel surface. Normally, hydrogen atoms recombine to form H₂ gas and desorb, but H₂S acts as a recombination poison, inhibiting this process. As a result, more atomic hydrogen diffuses into the steel lattice, leading to embrittlement.
In the presence of CO₂ (common in natural gas), a synergistic “sour corrosion” occurs. CO₂ forms carbonic acid, accelerating general corrosion rates up to 10 mm/year in severe cases, while H₂S forms protective iron sulfide (FeS) films. However, these films are often porous and non-adherent, allowing continued attack beneath them. Studies show corrosion rates increase with H₂S concentration, temperature (up to 60–80°C), and flow rates due to enhanced mass transfer.
Sulfide Stress Cracking (SSC)
SSC, also known as hydrogen embrittlement cracking, is a brittle failure mode unique to sour environments. It occurs under tensile stress (from operating pressure or residual stresses) when atomic hydrogen diffuses to high-stress regions like grain boundaries or inclusions, reducing ductility and causing intergranular cracks.
The mechanism follows NACE TM0177 test standards: At pH₂S thresholds (e.g., >0.1 bar), hydrogen uptake exceeds a critical level, leading to crack initiation and propagation at stresses as low as 50–80% of yield strength. Hardness is a key factor; steels with hardness >22 HRC are susceptible. In natural gas pipelines, SSC has caused failures in welds and bends, where stresses concentrate.
Hydrogen-Induced Cracking (HIC) and Stress-Oriented Hydrogen-Induced Cracking (SOHIC)
HIC initiates stepwise cracks perpendicular to the stress direction due to hydrogen accumulation at non-metallic inclusions (e.g., MnS). In pipelines, this leads to blistering—delaminations that weaken the wall. SOHIC combines HIC with tensile stress, forming stacked cracks parallel to the surface, reducing pressure containment.
These mechanisms are prevalent in wet H₂S environments, with crack growth rates up to 1 mm/h. Bacteria can worsen external corrosion by consuming hydrogen, further promoting ingress.
Influencing Factors
- pH and Temperature: Optimal corrosion at pH 3–5 and 40–80°C.
- Steel Composition: Low-alloy steels with controlled sulfur and phosphorus levels resist better.
- Inhibitors: Amine-based or imidazoline inhibitors form barriers, but their efficacy drops in high-flow or high-H₂S scenarios.
Effects on Overall Integrity Losses
H₂S corrosion compromises pipeline integrity by thinning walls, inducing cracks, and creating leak paths, leading to a cascade of failures. Integrity losses manifest as:
Structural Degradation and Leakage
General corrosion reduces wall thickness, lowering the maximum allowable operating pressure (MAOP). A 10% wall loss can halve burst pressure per Barlow’s formula: P = (2σt)/D, where t is thickness. Cracks from SSC or HIC propagate under cyclic loading, causing pinhole leaks or ruptures.
Industry data indicates H₂S-related issues account for ~25% of pipeline integrity failures in sour service. In the U.S., PHMSA reports over 300 significant incidents annually from internal corrosion, many H₂S-linked.
Safety and Environmental Risks
Leaks release toxic H₂S (lethal at 100 ppm) and flammable gas, risking explosions. The 2010 San Bruno pipeline rupture, though not H₂S-specific, highlights how corrosion-weakened pipes fail catastrophically. H₂S failures often occur in low spots where water accumulates, accelerating localized attack.
Operational Impacts
Integrity losses necessitate frequent inspections (e.g., ILI pigging), repairs, and shutdowns, reducing throughput by 5–20% in affected segments. Hydrogen embrittlement also lowers fracture toughness, making pipes brittle under seismic or third-party damage events.
Overall, H₂S shortens pipeline life from 50+ years to 20–30 years without mitigation, amplifying downtime and regulatory scrutiny under standards like API 1163.
Estimates on Annual Costs Due to H₂S Damage
The economic burden of corrosion in the oil and gas industry is immense, with global costs estimated at $60 billion annually, representing 20–30% of total corrosion expenses worldwide ($2.5 trillion). While comprehensive H₂S-specific figures are elusive due to bundled reporting, targeted analyses provide sobering insights.
In the upstream sector (exploration and production), H₂S corrosion drives ~$1.3 billion in撞 annual U.S. costs, with 33% ($463 million) spent on inhibitors alone. Globally, sour gas handling adds billions; one estimate pegs H₂S mitigation in pipelines at $5–10 billion yearly, including materials upgrades (e.g., to corrosion-resistant alloys like duplex stainless steel, costing 2–3x more).
Failure costs dominate: A single H₂S-induced rupture can exceed $100 million in cleanup, fines, and lost production, as seen in the 2016 Aliso Canyon incident (though methane-focused, analogous). With 25% of integrity failures H₂S-attributable, this translates to $15–20 billion in global damages, encompassing:
| Cost Category | Estimated Annual Global Cost (USD Billion) | H₂S Attribution (%) | H₂S-Specific Estimate (USD Billion) |
|---|---|---|---|
| Direct Corrosion Damage (Leaks/Ruptures) | 20–30 | 20–30 | 4–9 |
| Inspection & Maintenance | 15–20 | 25 | 3.75–5 |
| Inhibitors & Coatings | 10–15 | 33 | 3.3–5 |
| Production Downtime | 10–15 | 20 | 2–3 |
| Total | 55–80 | ~25 | 13–22 |
These figures are conservative; indirect costs like environmental remediation and litigation can double totals. In the U.S., internal corrosion prevention in oil/gas pipelines costs $1.052 billion yearly, with H₂S a major driver. Emerging hydrogen blending in natural gas pipelines could exacerbate risks, potentially adding $1–2 billion in new mitigation expenses.
Mitigation Strategies and Future Outlook

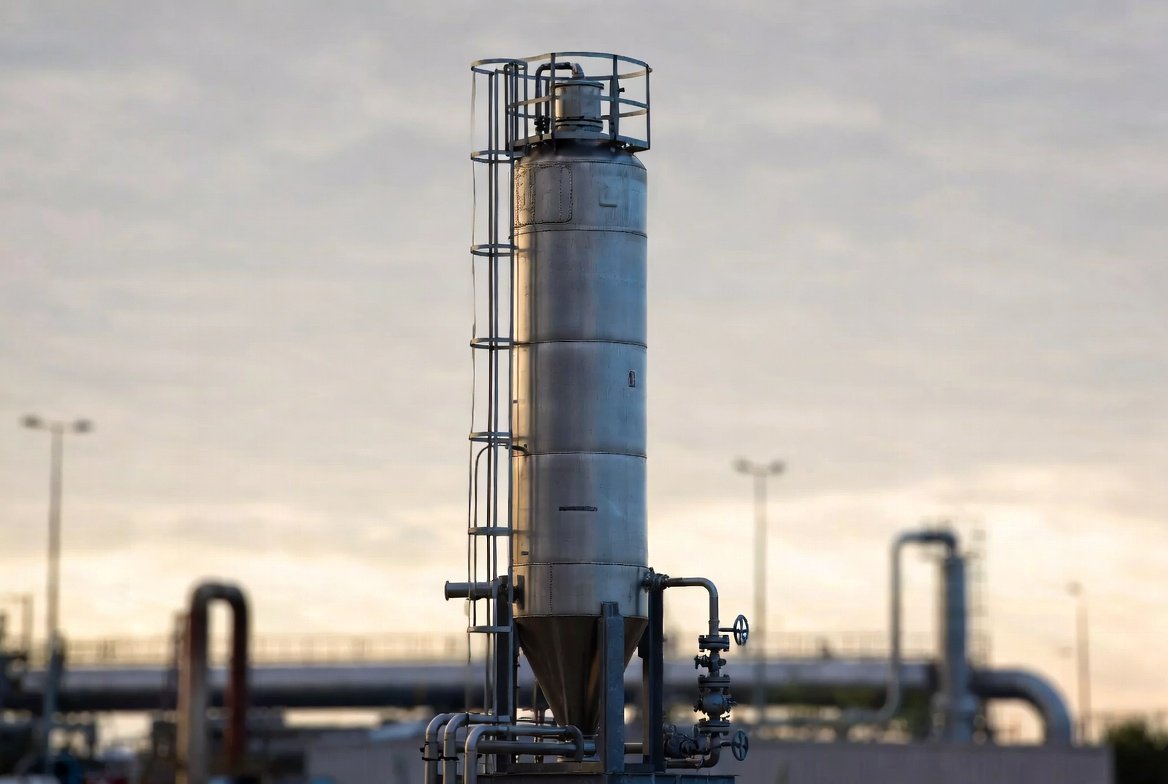

Preventing H₂S corrosion requires a multi-pronged approach: Sweetening processes (e.g., amine absorption) to remove H₂S upstream, use of inhibitors, cathodic protection, and advanced materials like CRA-clad pipes. Real-time monitoring with sensors and predictive analytics (e.g., ML-based ILI data) is gaining traction.
As the energy transition pushes for lower emissions, sour gas fields remain vital, underscoring the need for R&D in H₂S-tolerant alloys and green inhibitors. By addressing H₂S proactively, the industry can safeguard integrity and curb costs, ensuring reliable energy delivery for decades.
Conclusion
In summary, H₂S’s corrosive prowess—from electrochemical attack to catastrophic cracking—poses an existential threat to natural gas infrastructure, driving integrity losses that ripple through safety, operations, and economics. With annual damages in the tens of billions, investing in robust controls is not just prudent—it’s imperative.
