Adsorbents for H2S Removal

Pipeline specifications typically require H₂S levels below 4 ppm to prevent corrosion and ensure safety. Among various removal technologies—such as amine scrubbing, membranes, and chemical scavenging—adsorption using solid adsorbents offers a dry-bed, non-regenerative or semi-regenerative solution ideal for small-to-medium scale operations, offshore platforms, biogas upgrading, and polishing applications.

Adsorbents for H₂S removal primarily rely on chemisorption (reactive sulfidation) or physisorption. This article focuses on metal oxide-based adsorbents, including iron-based (Fe₂O₃, FeO, Fe(OH)₃), zinc oxide (ZnO), copper oxide (CuO), and mixed metal oxides (e.g., Cu-Zn-Al-O, Fe-Cu-Al-O). We explore their distinct chemistries, comparative benefits and drawbacks, available physical forms (granular vs. extruded pellets/extrudates), and how natural gas contaminants like CO₂, water, mercaptans, and hydrocarbons impact performance and fouling. Data is drawn from industry sources and technical reviews as of 2026.

1. Iron-Based Adsorbents (Iron Oxide, Iron Hydroxide, and Iron Sponge/Carbonate)

Iron-based adsorbents are among the most established and cost-effective options for H₂S removal, particularly in water-saturated natural gas streams. Common variants include iron oxide (Fe₂O₃ or FeO), iron hydroxide (Fe(OH)₃, α-FeOOH, γ-FeOOH), and iron sponge (often hydrated iron oxide on wood chips or similar supports). Iron carbonate (FeCO₃, sourced from siderite) is an emerging subclass.

Chemistry: The primary reaction for iron oxide is:
Fe₂O₃ + 3H₂S → Fe₂S₃ + 3H₂O
For iron hydroxide: 2Fe(OH)₃ + 3H₂S → Fe₂S₃ + 6H₂O
Iron carbonate follows: FeCO₃ + H₂S → FeS + CO₂ + H₂O

These are irreversible chemisorption processes forming stable iron sulfides at ambient to moderate temperatures (up to 180°C). Regeneration is possible but limited—air oxidation of spent media can restore some activity while depositing elemental sulfur, though heat generation (up to -603 kJ/mol) and pore clogging often make disposal more practical.

Benefits over other chemistries: Extremely low cost and high capacity in wet gas (up to 200–710 g H₂S/kg or 20–40 wt% sulfur loading for advanced formulations like SulfaTreat 423). They excel in high-moisture streams where many other media lose performance. Iron hydroxides offer superior surface area (258–301 m²/g) and capacity compared to pure oxides (e.g., 135 mg H₂S/g for Fe(OH)₃ vs. ~4 mg/g for α-Fe₂O₃). Non-pyrophoric and non-hazardous spent media simplify disposal. They also remove some siloxanes and mercaptans as a bonus in biogas/natural gas applications.

Drawbacks: Lower precision for ultra-low H₂S residuals (<1 ppm) compared to ZnO or mixed oxides. Regeneration produces exothermic reactions and sulfur deposits that reduce capacity over cycles. Higher upfront bed volume may be needed for very high H₂S loads versus higher-capacity mixed oxides. Not ideal for dry gas or high-temperature applications.

Commercial examples include SLB SulfaTreat (granular/extrudates) and SULFURTRAP EX. Ideal for upstream FPSOs, gas storage, and refineries handling 100 ppm–5% H₂S at 1–100 bar.

2. Zinc Oxide (ZnO) Adsorbents

Zinc oxide has been a benchmark for desulfurization since the 1960s, prized for its high thermodynamic affinity for sulfur.

Chemistry: ZnO + H₂S → ZnS + H₂O. This sulfidation is highly favorable, enabling H₂S reduction to sub-ppm levels even at elevated temperatures.

Benefits over iron-based media: Superior thermal stability (optimal 200–400°C) and ultra-low residual H₂S removal (<1 ppm), making it excellent as a guard bed upstream of molecular sieves or reformers. Higher selectivity in dry gas and resistance to SO₂ formation. Capacities range 100–300 mg/g (10–30 wt% S). Less sensitive to certain organics than iron in specific conditions.

Drawbacks compared to iron or mixed oxides: More expensive and sensitive to water vapor, which can form zinc hydroxide and drastically reduce capacity. Poorer performance in wet or reducing atmospheres (Zn volatility above 600°C). Regeneration is energy-intensive and often uneconomical, leading to disposable use. Slower kinetics at ambient temperatures versus copper or mixed systems.

ZnO is preferred in midstream dry gas processing and syngas polishing. Manufacturers include Axens (AxTrap 401) and Johnson Matthey (PURASPEC series).

3. Copper Oxide and Mixed Metal Oxides (e.g., Cu-Zn-Al-O, Fe-Cu-Al-O, SELECT S)

Mixed metal oxides represent advanced formulations combining metals like copper (CuO), zinc, iron, manganese, aluminum, or cerium for synergistic effects. Proprietary examples include SLB SELECT S and Johnson Matthey PURASPEC 1065/2058.

Chemistry: Hybrid sulfidation, e.g., CuO + H₂S → CuS + H₂O, often with Zn or Fe doping forming mixed sulfides. Doped variants (Fe–Cu–Al–O) show enhanced mechanisms via alkaline surface environments or improved dispersion on supports like SBA-15 or Al₂O₃.

Benefits over single-metal oxides: Significantly higher capacities (300–500+ mg/g or up to 66% higher than standard) and faster kinetics, even at ambient/low temperatures (25–150°C). Copper-based variants offer 5x higher sulfur capacity than iron oxide in oxygen-containing streams, with sharper breakthrough curves and better utilization. Mixed oxides handle both dry and wet gases, show reduced CO₂ inhibition (doped CuO outperforms pristine), and maintain performance across wider H₂S/mercaptan ranges (100–5000 ppm). Synergy (e.g., Fe creating alkaline sites for CuO) boosts low-concentration efficiency. Some achieve <0.1 ppm residuals with excellent porosity control for minimal pressure drop.

Drawbacks: Higher upfront cost than iron-based media. Non-regenerable in most cases (capacity drops 40–50% over cycles due to sulfate/sulfide accumulation). Competitive adsorption with CO₂/H₂O can still occur, though less severely than in pure ZnO or CuO. Limited to moderate pressures (1–50 bar) and temperatures to avoid sintering or reduction to metallic forms.

These are ideal for compact systems, FPSOs, syngas, and CO₂-rich streams. Copper-promoted ZnO on silica, for instance, achieves up to 92% ZnO utilization at room temperature.

4. Physical Forms of Adsorbents: Granular vs. Extruded Pellets/Extrudates

Adsorbents are supplied in various physical forms tailored to bed dynamics:

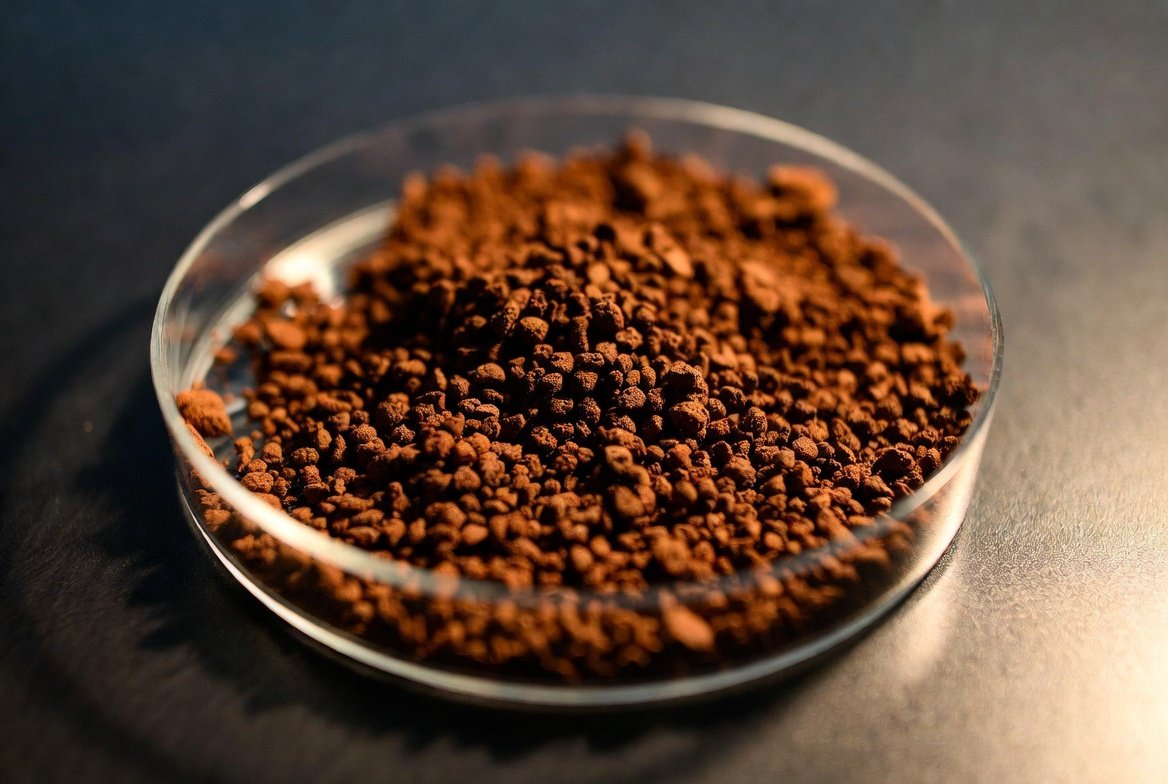

• Granular (e.g., 4–10 mesh iron oxide/sponge): Irregular particles from crushed or naturally occurring materials. Benefits include high surface area per volume and lower cost. Drawbacks: Higher pressure drop (risk of channeling/compaction), more dust generation during loading, and potential for bed settling in high-flow or vibrating systems.
• Extruded Pellets/Extrudates or Cylindrical Forms (2–5 mm diameter, common in ZnO, mixed oxides, and modern iron like SulfaTreat 423): Uniform shapes produced by extrusion with binders. Benefits: Significantly lower and more stable pressure drop (<0.5 psi/ft), higher mechanical strength (less attrition/compaction), better flow distribution, reduced channeling, and higher bed utilization (up to 4x capacity in some iron extrudates due to optimized porosity). Ideal for high-flow, long-bed-life applications and smaller vessel designs, lowering capex. Spherical or pelletized iron carbonate variants offer similar advantages with added versatility for liquid streams.

Form selection impacts OPEX: Extrudates minimize compressor energy and extend changeout intervals, while granules suit low-pressure, cost-sensitive setups.

5. Contaminants in Natural Gas That Affect or Foul Adsorbents

Natural gas streams contain co-contaminants that can degrade adsorbent performance:

• Water (H₂O): Beneficial for iron hydroxides (maintains reactivity) but detrimental to ZnO (forms inactive hydroxide). Mixed oxides tolerate it better; excessive moisture can promote channeling or hydrolysis.
• Carbon Dioxide (CO₂): Competitive adsorption reduces H₂S capacity (more pronounced in pristine CuO than doped mixed oxides). Can lead to COS formation via side reactions at >100°C, fouling downstream equipment. Inhibits capacity by 20–50% in some tests.
• Mercaptans (RSH), COS, and CS₂: Compete for active sites; iron carbonate and some mixed oxides remove them effectively (78–100% thiol removal), but others experience reduced H₂S capacity or pore blockage.
• Hydrocarbons (heavy/BTX/siloxanes): Physisorb strongly on activated carbon or zeolites, causing irreversible fouling. Metal oxides are more resistant but can see reduced surface area over time in high-hydrocarbon streams.
• Oxygen (O₂): Promotes elemental sulfur formation (exothermic, risk of hotspots) and oxidation of sulfides back to sulfates, accelerating deactivation. Copper-based media perform better with trace O₂.

Fouling mechanisms include pore occlusion by elemental sulfur/polymers, sintering, and site poisoning. Pre-treatment (dehydration, hydrocarbon removal) or lead-lag vessel configurations mitigate these. Regular monitoring of breakthrough curves is essential.

6. Selection Guidelines and Conclusion

Choosing the right adsorbent depends on gas composition, flow rate, pressure, temperature, H₂S load, and economics. Iron-based media suit wet, high-H₂S, cost-sensitive applications. ZnO excels in dry, high-temperature trace removal. Mixed metal oxides (especially Cu-doped) provide the best balance for versatile, high-capacity, low-temperature performance in challenging streams.

Regeneration potential is generally low for metal oxides (thermal air oxidation recovers 40–75% capacity but with degradation), favoring disposable media with metal recovery disposal options. Future trends include supported nanocomposites and improved doping for higher regenerability and contaminant tolerance.

In summary, understanding chemistry—sulfidation kinetics, surface basicity, and synergy in mixed systems—along with physical form optimization and contaminant management, enables operators to achieve reliable, efficient H₂S removal while minimizing downtime and costs. For specific applications, consult vendors for performance guarantees based on site-specific gas analysis.

Adsorbent Type	Typical Capacity (mg/g)	Temp Range (°C)	Best For	Key Drawback
Iron-Based (Oxide/Hydroxide)	200–710	Ambient–180	Wet gas, high H₂S	Disposal-focused
Zinc Oxide (ZnO)	100–300	200–400	Dry gas, ultra-low residuals	Water sensitivity
Mixed Metal Oxides (Cu/Zn/Fe)	300–500+	Ambient–150	Versatile, fast kinetics	Higher cost

References available upon request from industry sources including SLB, Axens, Johnson Matthey, and peer-reviewed reviews.
